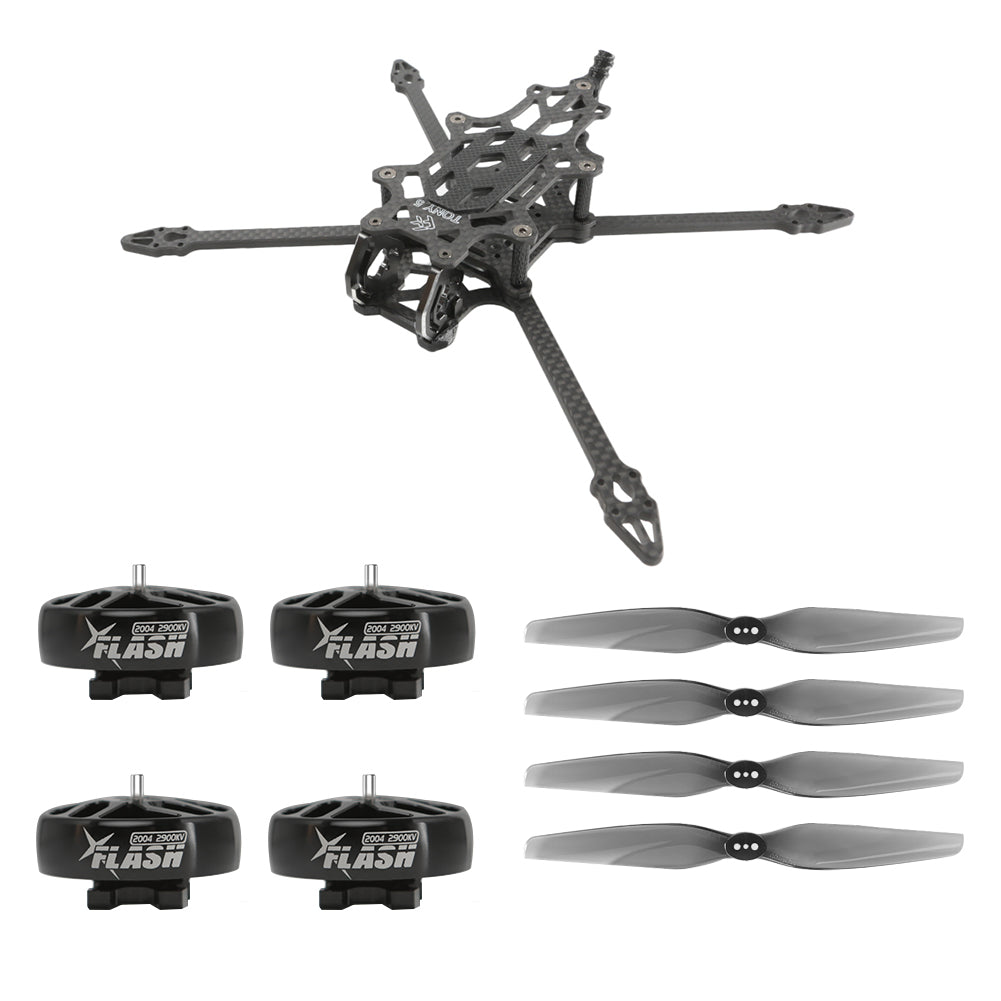

TONY5 Flash 2004 HQ T5x3 Bundle Kit

Frame:

Model:Tony 5
Geometry: True-X
Wheelbase:215mm
Arm thickness: 4mm
Top plate thickness: 2mm
Middle plate thickness: 2mm
Bottom plate thickness: 2mm
Propeller size: 5inch
CNC plate thickness: 4mm
FPV cam spacing: 19mm/20mm
Weight: 57g(with TPU parts)
Total Dimensions:133.7mm*168*29mm
Motor mounting hole:12mm*12mm(M2)
Stack mounting holes: 20mm*20mm/25.5mm*25.5.5mm(M3)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)

Sword 2004:

- Model: Flash 2004
- KV: 1800KV/2900KV (select)
- Input Voltage: 4S/6S Lipo
- Configuration: 12N14P
- Motor dimensions (Dia *Len): 16.5*26MM
- Weight: 16.6g (including 150mm wires)
- Wire length: 22AWG 150mm
- Mounting pattern: 12*12mm

HQProp T5X3

Propeller Diameter: 5 inch
Pitch : 3
Blades : 2
Material : Poly Carbonate
Weight :2.35g
Hub Diameter : 9.8mm
Hub Thickness:5mm
Shaft :1.9/1.5/1.9mm
Adaptor Rings : NO

Includes:
