FlyFishRC Dual-Band 5.8Ghz/2.4Ghz UFL Antenna For DJI O3

FlyFishRC Dual-Band 5.8Ghz/2.4Ghz UFL Antenna For DJI O3

Name: FlyFishRC Dual-Band 5.8Ghz/2.4Ghz UFL Antenna For DJI O3
Brand: FlyFishRC
SKU: A000468
Price: 14.90 USD
Availability: InStock

SKU A000468

Availability 41 In stock

$14.90

Black

Red

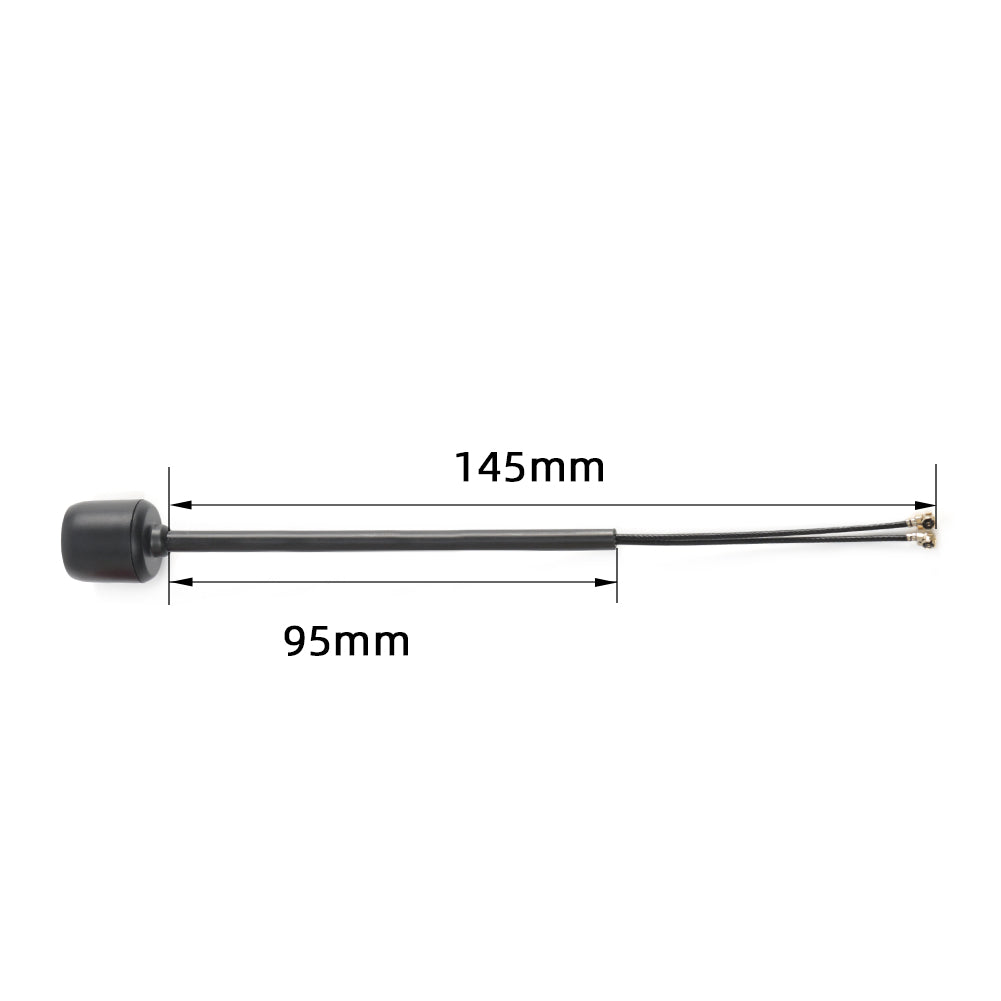

145mm

95mm

40mm Stubby

Subtotal: $14.90

Tags: / DJI O3 antenna / Dual-band antenna / fpv accessories / fpv antennas

Description

Description

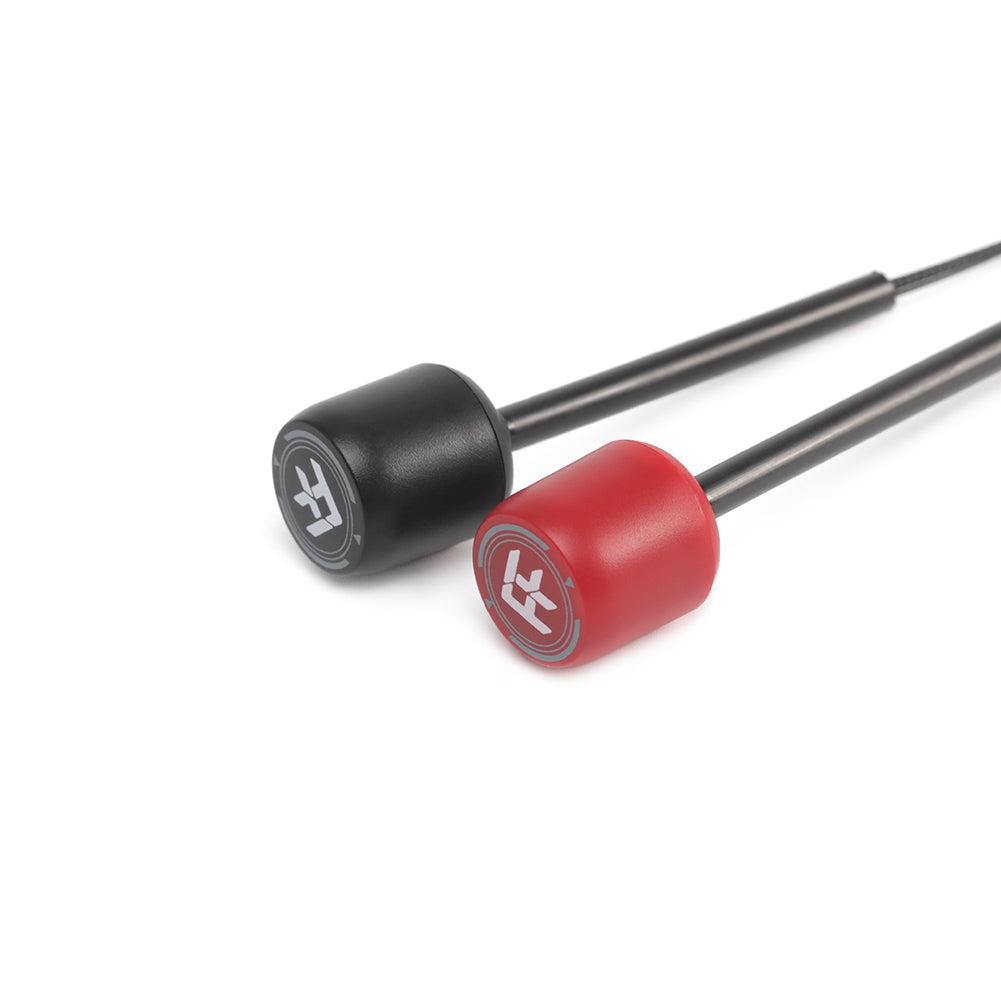

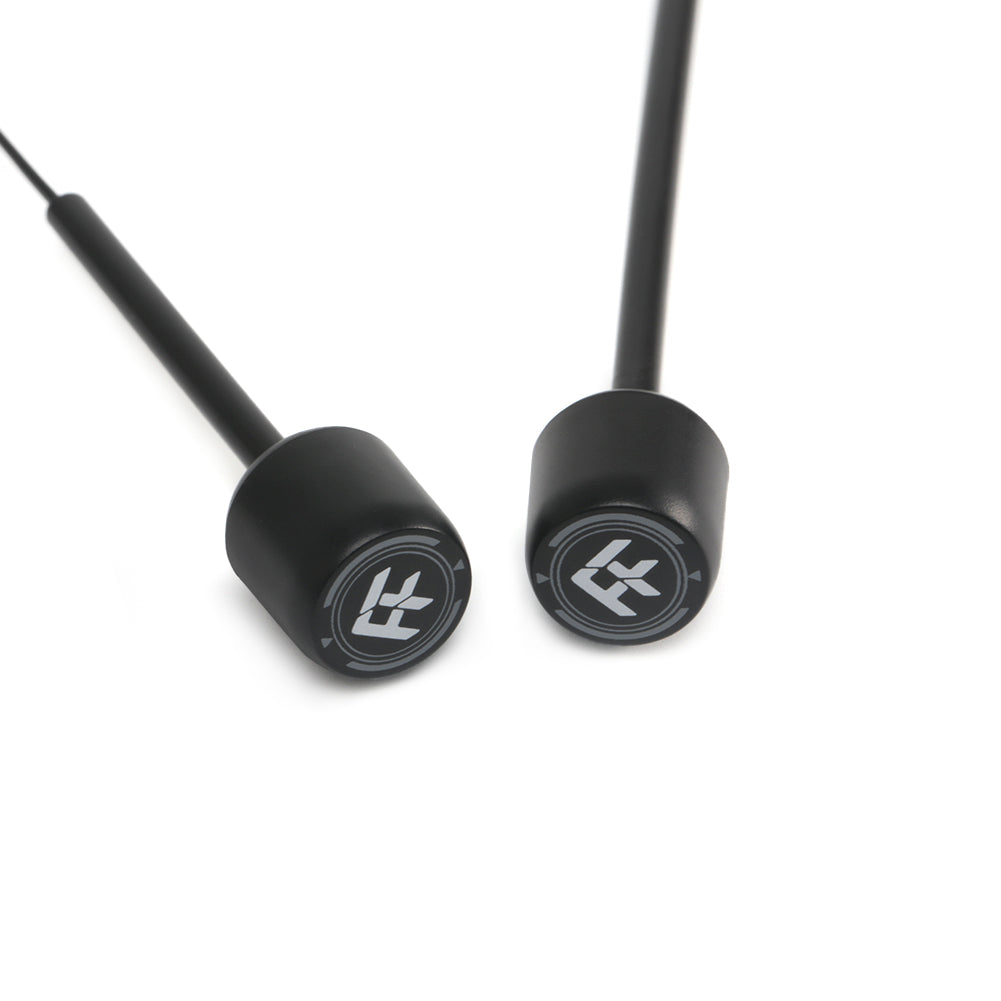

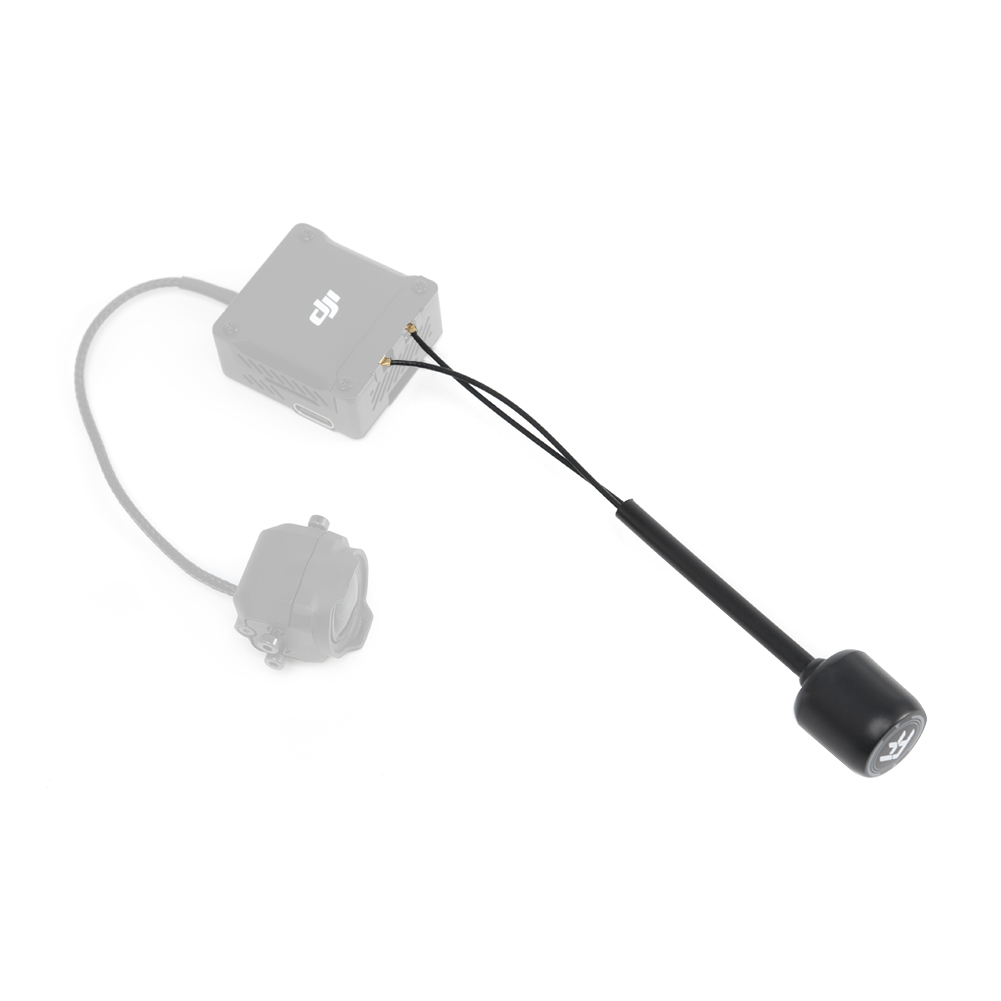

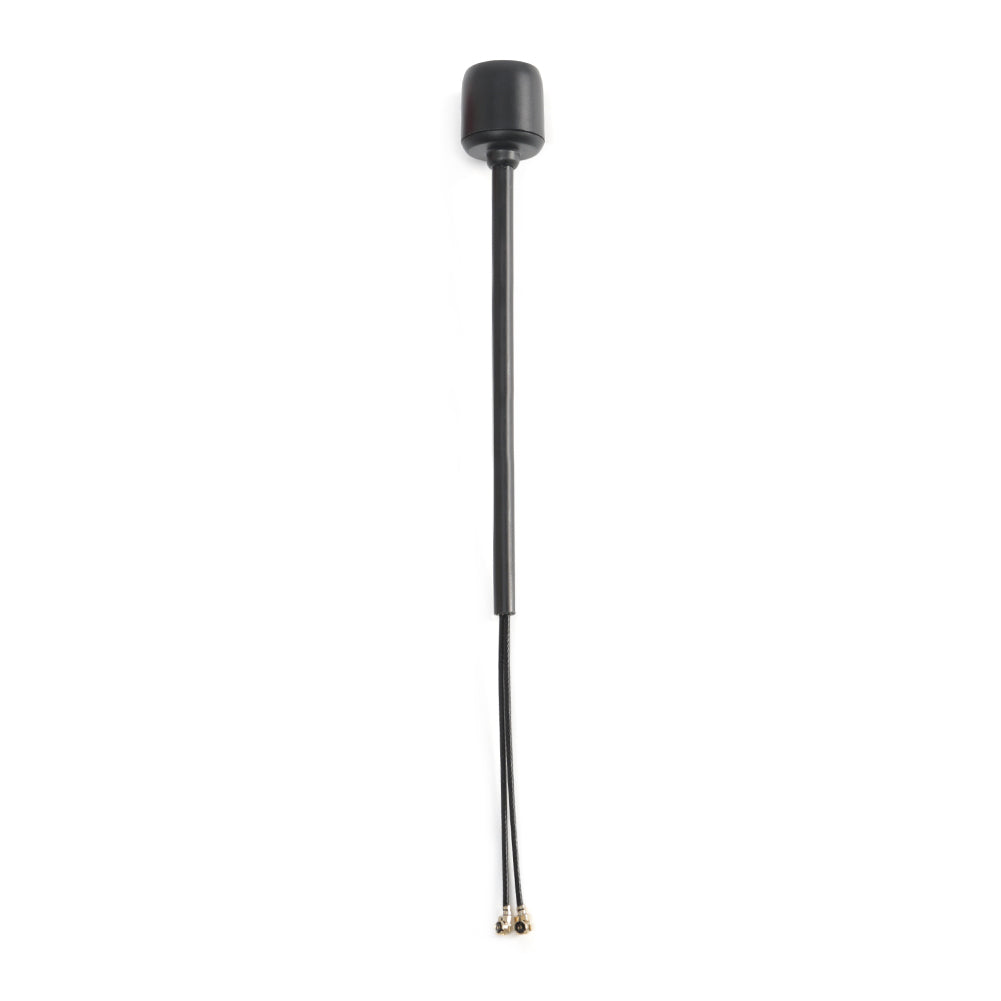

FlyFishRC offers a dual-band dual-polarized omni-directional antenna for the DJI O3 Air Unit that features internal integration of 2.4G and 5.8G dual-band dual-polarized technology to provide comparable compatibility and performance to the original device. It has a strong anti-interference capability for long-distance transmission and is equipped with an I-PEX dual connector, making it small and lightweight. The antenna comes in red and black with different lengths available to suit different flight purposes. Its housing is made of impact-resistant polycarbonate material, providing a smooth surface and durability.

Specifications:
Frequency Range：2400-2500MHz/5700-5900MHz
Gain：2.5dBi/3.8dBi
VSWR≤1.6
Polarization： Linear
Impendance:50Ω

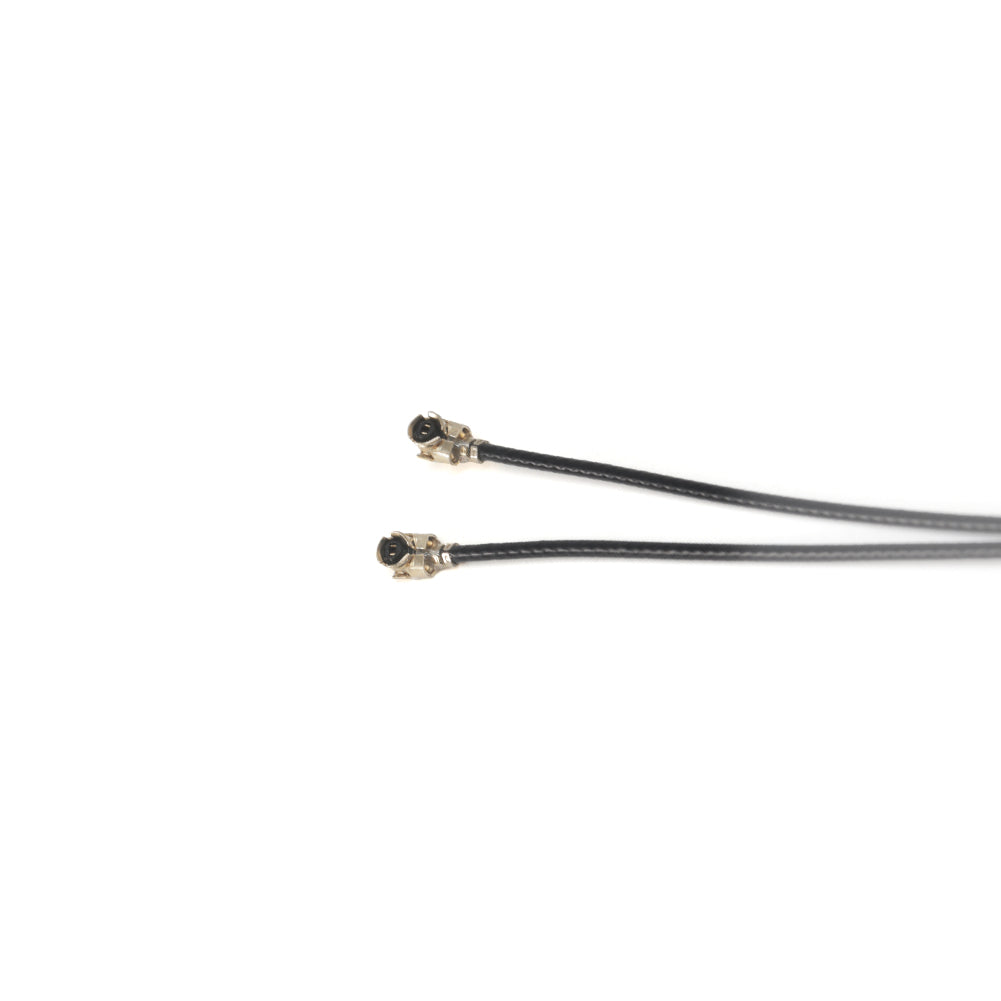

Connector： IPEX*2
Cable： RF1.13

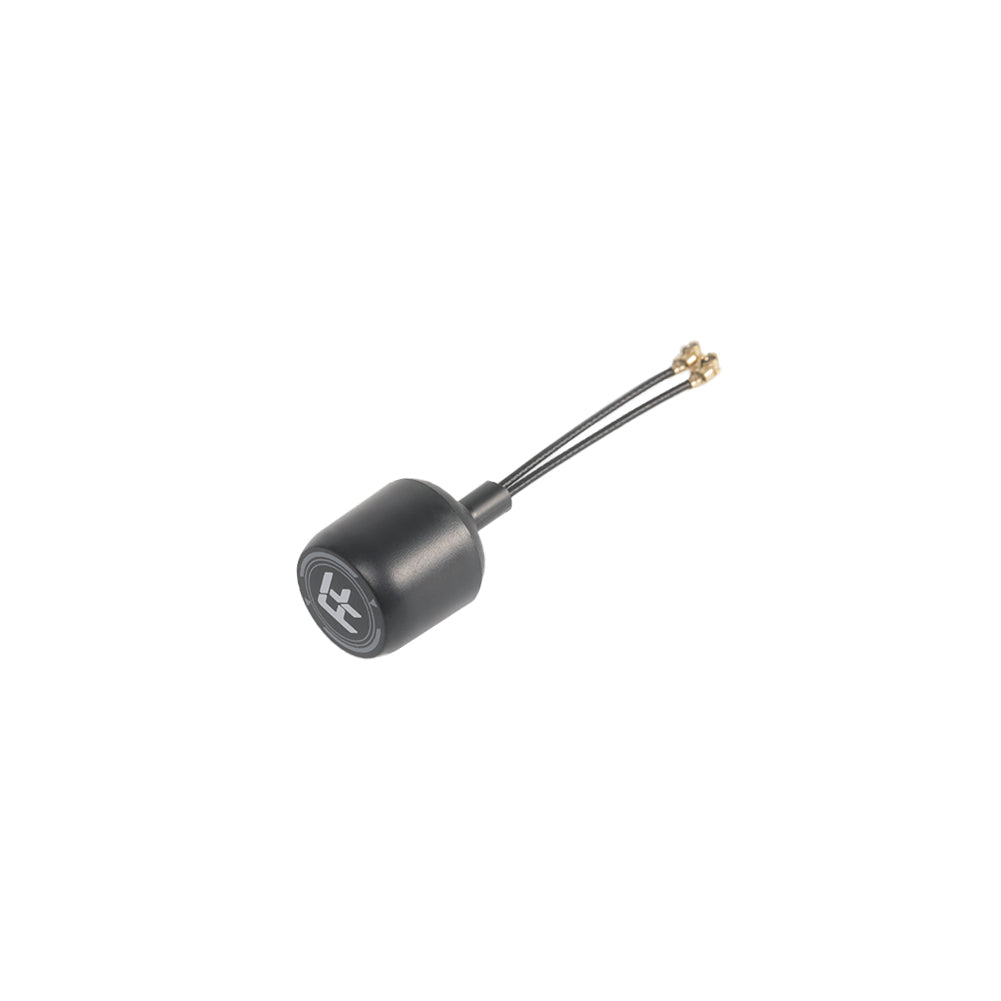

40mm Stubby weight：2.4g

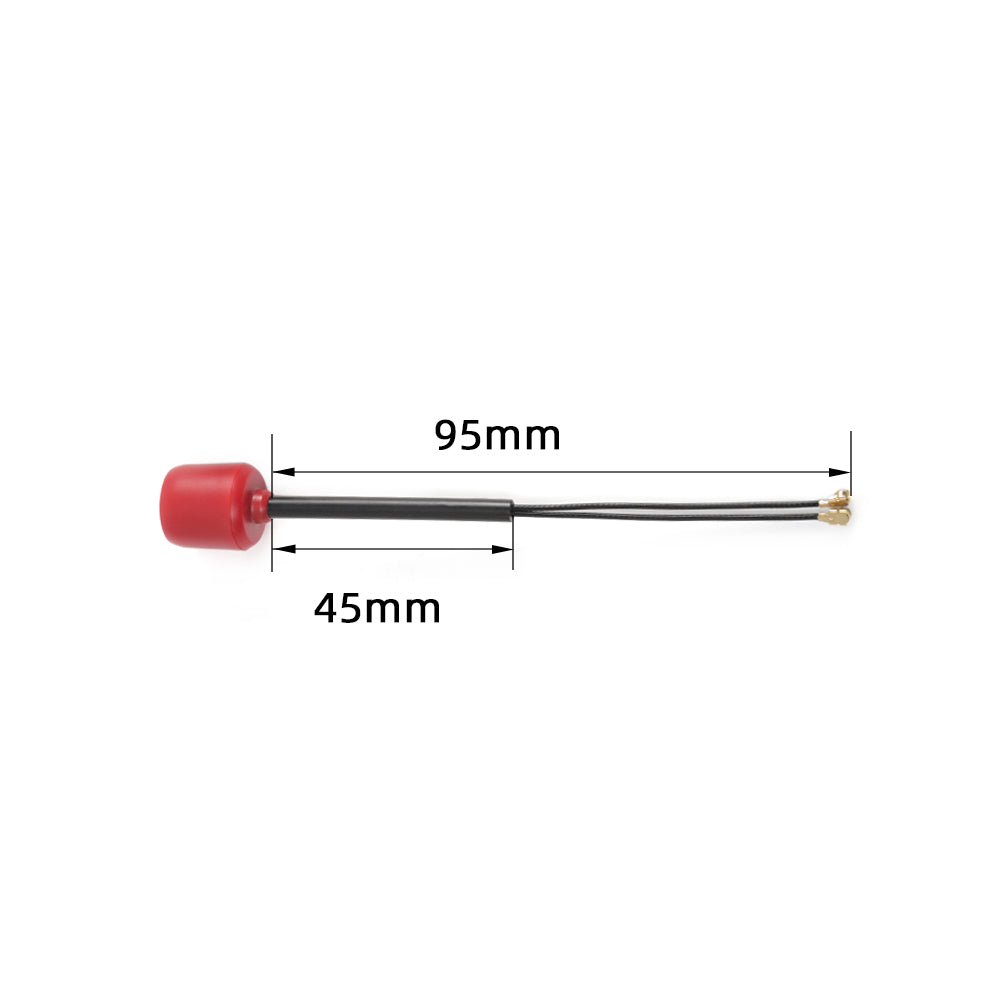

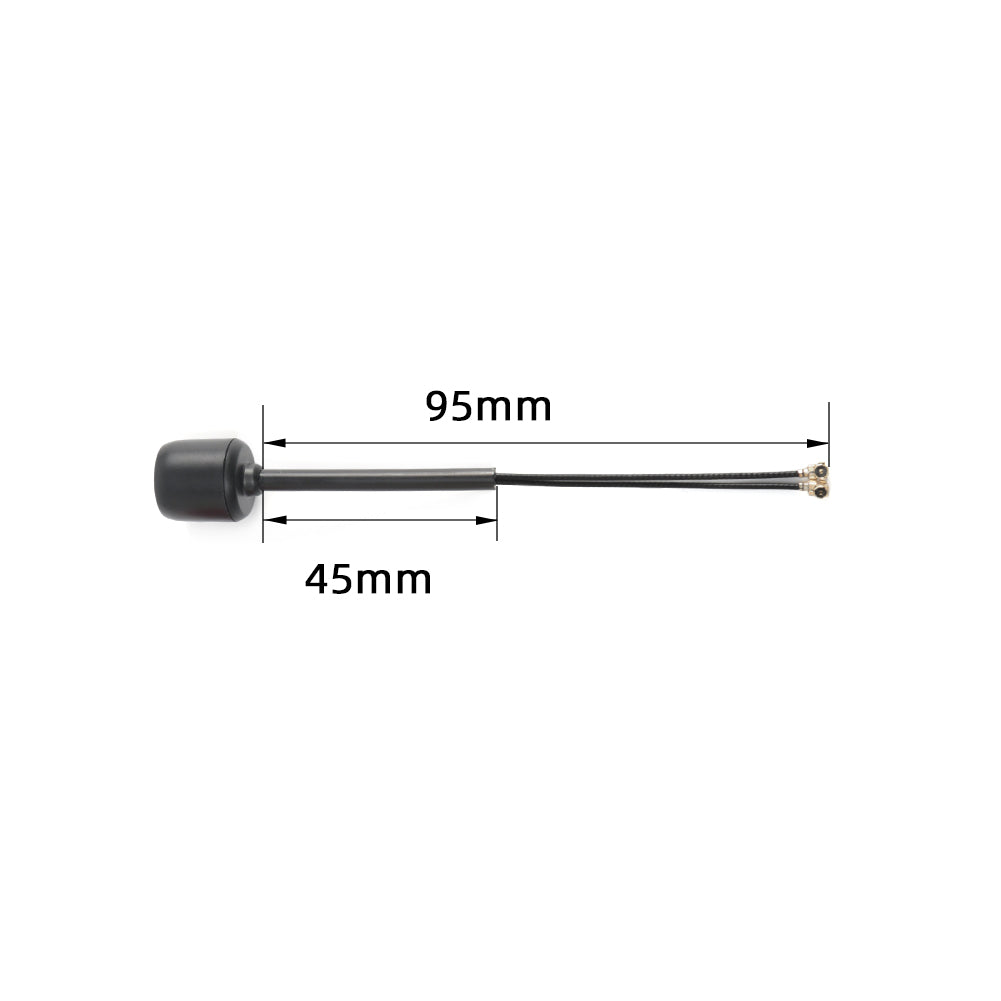

95mm weight：3.3g

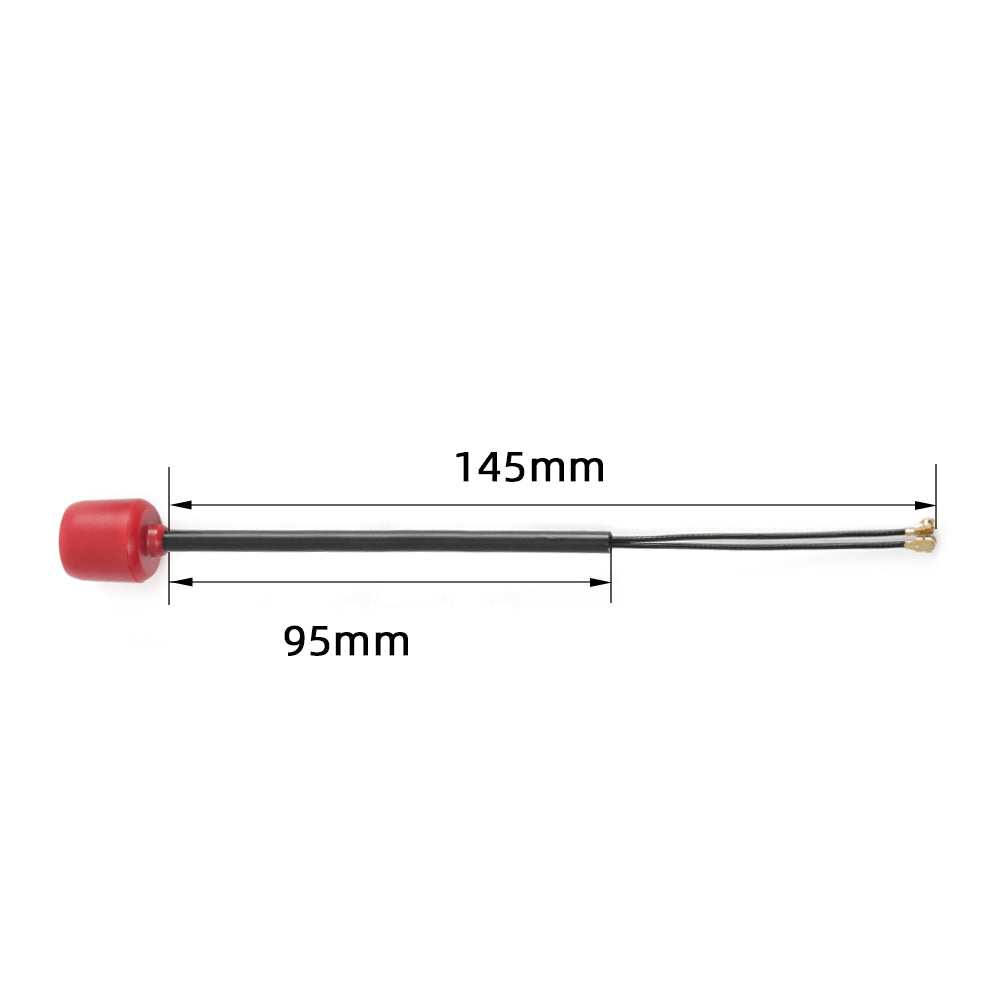

145mm weight：3.9g
Size：Φ16*17mm

Includes:
1x FlyFishRC O3 Dual-band Antenna

Long

So far it is what I was wanting to get long range when I wanna fly far for sure I'll have more review once I get in flight still building

Flyfish osprey duel band antenna

I purchased 3 of these antennas for my dji o3 air systems and so far they.seem great my only complaint is one of the ufl connectors came off the antenna lead wasn't attached very well but they seem like good antennas.
